MAG-031A/023A Precision 2-Axis Magnetometer Systems
The Mag-031A/Mag-023A are precision 2-Axis Flux-Gate Magnetometer Systems designed for use in high temperature and high shock and vibration environments for Dynamic Azimuthal scanning applications. When combined with MWD Survey information, the Magnetometer System can be used to accurately log sensor data Azimuthally whilst drilling.

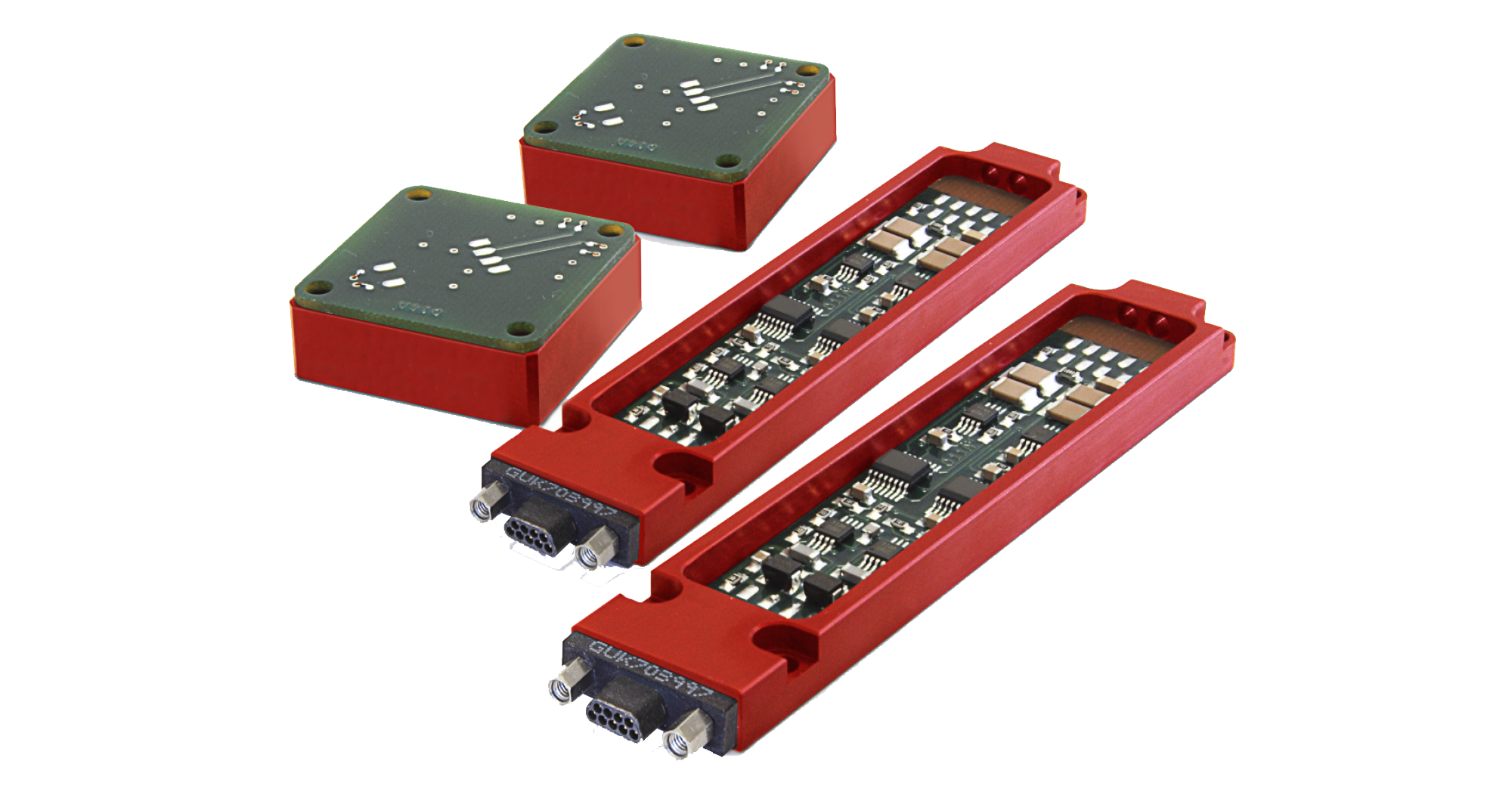

The 2-Axis system consists of two single-axis Magnetometers, a Dual Channel Processing Board and a single Dual Channel Excitation Board. Specified for operation at a continuous temperature of 175°C, and a survival temperature of 185°C, the System operates from single +5V power supply with power consumption of less than 250mW.
175°C
Precision Flux Gate Magnetometers
- Easy implementation for Azimuthal scanning
- Simple +5V power supply
- Low power consumption
- Robust sensor and electronics design
- High Temperature qualified
- Full calibration record provided
- Small footprint
| Min | Typ | Max | Units | Comments | |
|---|---|---|---|---|---|
| Measurement Range | +/- 0.7 (+/-70,000) | Gauss (nT) | |||
| Nominal Scale | 1.9 | V/Gauss | |||
| Scale Thermal Stability | +/-18 | +/-30 | ppm/°C | See Note 1 | |
| Initial Bias | +/-0.5 (+/-50) | +/-1.0 (+/-100) | mGauss (nT) | Ambient Temperature – see Note 1 | |
| Bias Thermal Stability | 0.001 (0.1) | 0.003 (0.3) | mGauss/°C nT/°C | See Note 1 | |
| Frequency Range | 0 | 275 | Hz | See Note 4 |
| Min | Typ | Max | Units | Comments | |
|---|---|---|---|---|---|
| Power Supply | +5.0 | Volts | |||
| Power Consumption | 250 | mWatts | See Note 2 |
| Length | Width | Height | Units | Comments | |
|---|---|---|---|---|---|
| Magnetometer Mag-031A | 1.22 (31.0) | 1.22 (31.0) | 0.394 (10.0) | Inches (mm) | |
| Magnetometer Mag-023A | 0.91 (23.0) | 0.91 (23.0) | 0.327 (8.3) | Inches (mm) | |
| Dual Ch Processing Board Assy | 3.75 (95.25) | 0.785 (19.94) | 0.25 (6.35) | Inches (mm) | Nominal – see Note 3 |
| Dual Ch Excitation Board Assy | 3.75 (95.25) | 0.785 (19.94) | 0.25 (6.35) | Inches (mm) | Nominal – see Note 3 |
| Min | Typ | Max | Units | Comments | |
|---|---|---|---|---|---|
| Operating Temperature | -25 | 175 | °C | ||
| -13 | 302 | °F | |||
| Survival Temperature | -25 | 185 | °C | ||
| -13 | 347 | °F | |||
| Vibration | 30 | g pk | Sine | ||
| 20 | g rms | Random | |||
| Shock | 1000 | g | 0.5mS Half Sine |
Notes
- Specifications shown uncorrected
- All axis fully functional
- Electronics boards available with or without frames - dimensions shown include frame and connector. Nominal dimensions for boards without frame and connector: 3.0”(L) x 0.6”(W) x (0.23”)
- Frequency response: -3dB point
