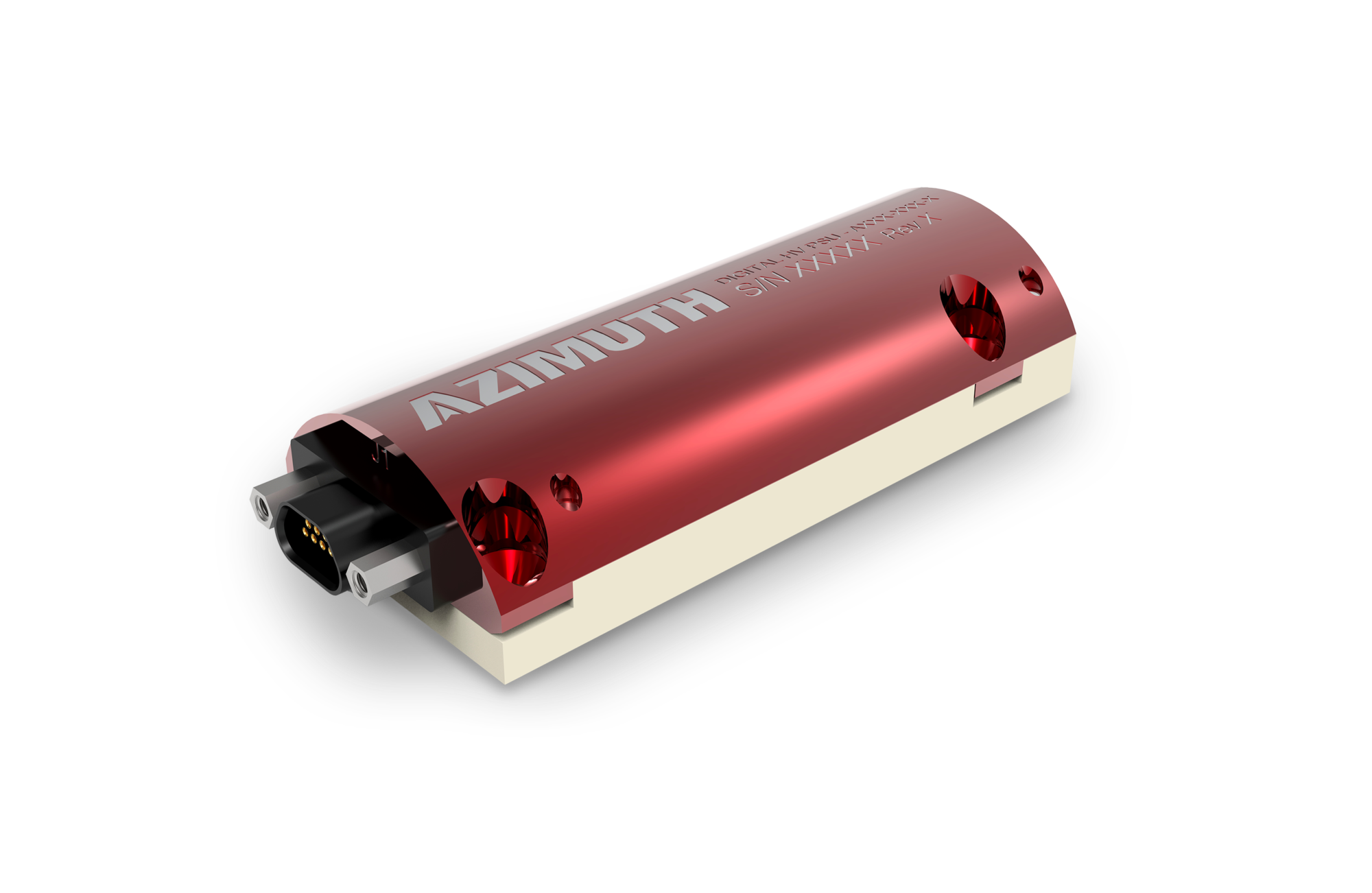

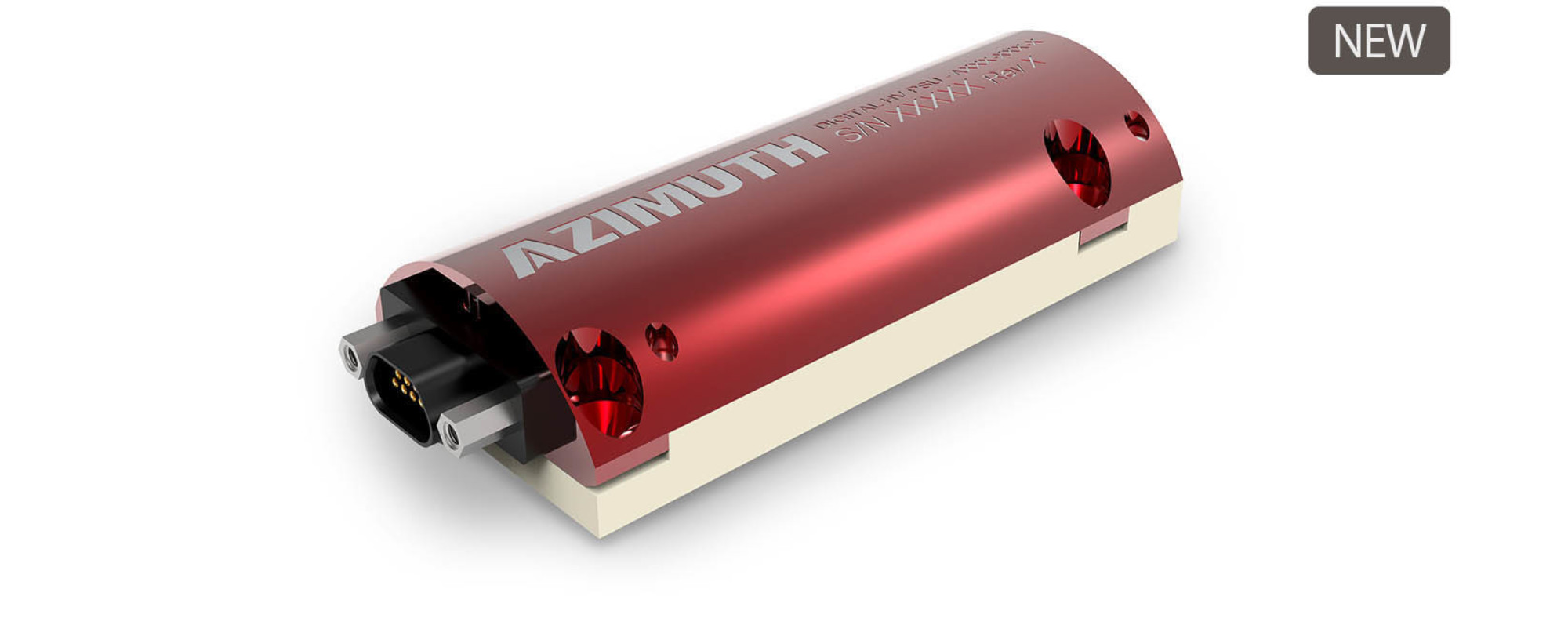

Digital HV-PSU Mini 2kV High Voltage Power Supply
The miniature Digital High Voltage Power Supply is a highly robust, low power unit for use in high temperature and high shock and vibration environements.
Designed for the efficient supply of high voltage to photomultiplier tubes and ionization chambers, the unit has an extremely small footprint and digital control of the output.
The HV is controlled through a 2-wire I2C connection, containing storage to maintain your HV setting, or can be pre-programmed to your required HV setting.
The unit is configured with a 9-pin MDM socket and simple external terminals at the output.
Operating Temperature
High Shock Vibration
Ultra Small Form
Low Power Consumption
• 500V – 2kV Output
• Only 2.75” (70mm) x 1.22” (31mm)
• Digital HV control – I2C
• Lower power consumption
• 175°C Operating Temperature
• Robust design and packaging
• PMT Power Supply
• Geiger Muller tube supply
• Proportional counters
• Small footprint
• Easy to use digital control
• High reliability design
| Description | Value | Unit | Comments | ||
|---|---|---|---|---|---|
| Output Voltage | 500 - 2000 | Volts | |||
| Output Ripple/Noise | 200 | mV | Typical | ||
| 500 | mV | Max | |||
| Voltage Regulation Temperature Coefficient | +/-0.00035 | %/°C | Typical | ||
| +/-0.0005 | %/°C | Max | |||
| Line Regulation | +/-0.0015 | %/Volt | Typical, from +20 to +40V i/p | ||
| Load Regulation | +/-0.05% | % | Max w/50% load variation | ||
| Output Voltage Rise Time | 15 | mS | Typical, to 95% of set point | ||
| Max Current | 100 | μA | Output voltage dependent | ||
| HV Signal Output Sensitivity | 1.0 | V/kV | Nominal |
| Description | Value | Units | Comments | ||
|---|---|---|---|---|---|
| Input Voltage | +25 to +40 | +25 to +40 | Volts | Operates at lower input voltages, depending on HV and load requirement | |
| Input Current | Temp | Load | Load | ||
| 10MΩ | 25MΩ | ||||
| Amb | 14 | 8 | mA | Typical, at Vin = 30V and Vout = 1500V | |
| 75°C | 15 | 8 | mA | Typical, at Vin = 30V and Vout = 1500V | |
| 125°C | 17 | 9 | mA | Typical, at Vin = 30V and Vout = 1500V | |
| 175°C | 22 | 13 | mA | Typical, at Vin = 30V and Vout = 1500V | |
| I2C | I2C | Includes non-volatile storage |
| Value | Units | Comments | |||
|---|---|---|---|---|---|
| Length | 70.0 (2.756) | mm (Inches) | |||
| Width | 31.0 (1.22) | mm (Inches) |
| Value | Units | Comments | |||
|---|---|---|---|---|---|
| Operating Temperature | -25 to 175 | °C | |||
| Survival Temperature | -40 to 185 | °C | |||
| Vibration | 30 | g pk | 50 – 1000Hz | ||
| 20 | g rms | 50 – 1000Hz | |||
| Shock | 1000 | g | 0.5mS, Half-Sine |
