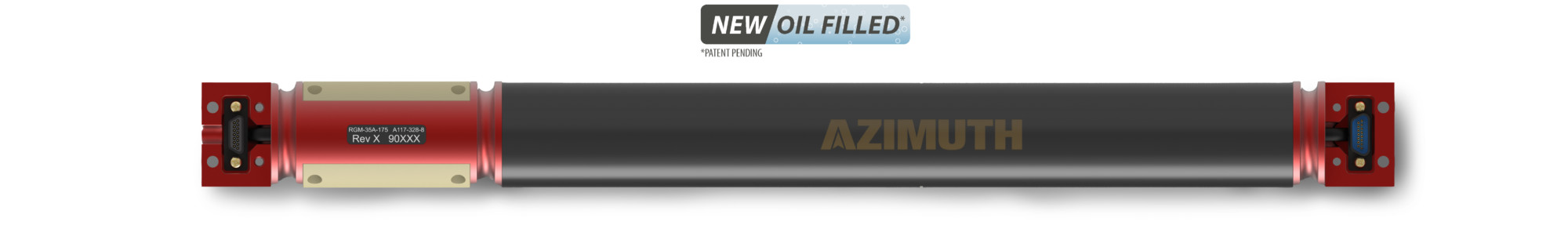

RGM-35A Ruggedised Gamma Module

The RGM-35A is a new generation MWD Gamma sensor module designed for the most severe vibrations and well conditions. The unique ‘oil-filled’ detector design provides shock and vibration attenuation like no other module in the market. The unit provides a ‘standard’ pulse output for compatibility with most MWD toolstrings and a unique interface and software, allowing in-house workshop test and calibration.

In addition to the ‘oil damping’, elimination of elastomer optical coupling and the need for an HV transformer translates to enhanced reliability in both high temperature and high vibration wells.

The RGM-35A module is qualified and tested under the extended range conditions, up to 50G rms vibration and 2000G shock.

175°C Operating Temperature

175°C Operating Temperature

50G rms Vibration Rating

50G rms Vibration Rating

Oil Damping

Oil Damping

Suspension System

Suspension System

RGM-35A

We provide a responsive repair, calibration and product support service. Our highly experienced and knowledgeable personnel are available to troubleshoot or repair equipment, and provide general product technical assistance.

If you need effective sensor support for your business contact
support@azimuthmwd.com for more information.
