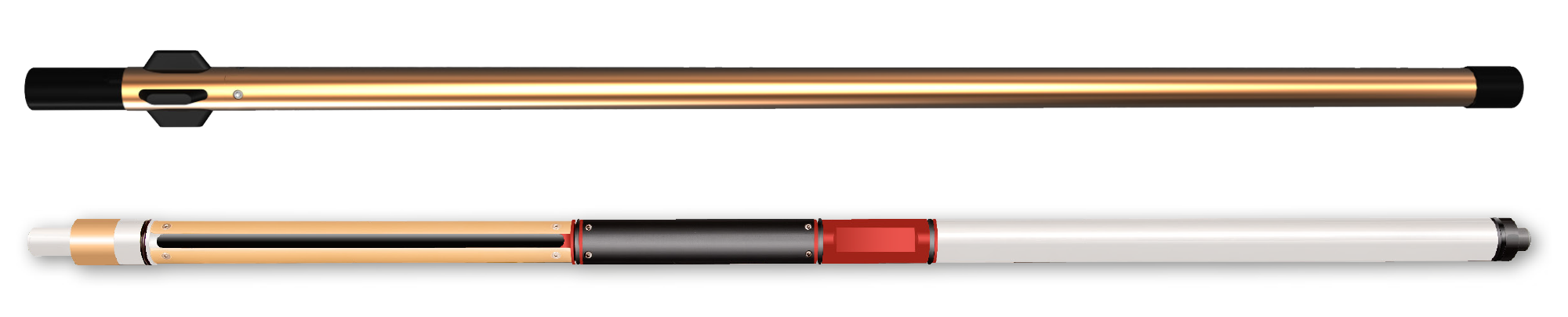

Gamma Ray Module (SGR)
A rugged scintillation based Gamma Ray Module designed for the toughest conditions. The module provides real time and memory storage of natural background Gamma radiation, serial communications, and a unique shock and vibration dampening
system to enhance the life of the sensor. The module is designed to be fully compatible with the Negative Pulse MWD System, but may be operated independently or in conjunction with other legacy MWD systems.
- Real time data and Memory storage
- High temperature qualified (175°C Option)
- Stabilised measurement over temperature
- Serial communications
- Geolink system compatible
- Up to 20Kpsi Pressure rating
- Variable averaging
- Low battery voltage detect
- Fully calibrated
| Value | Units | Comments | |||
|---|---|---|---|---|---|
| Measurement Energy Threshold | >50 | keV | |||
| Measurement Resolution | 1.0 | AAPI | |||
| Accuracy | +/-1.5% | Over Range | Over full temperature | ||
| Vertical Resolution | 6.0 | inches | Nominal |
| Value | Units | Comments | |||
|---|---|---|---|---|---|
| Diameter (Housing) LP | 1.895 | inches | |||
| 48.13 | mm | ||||
| Diameter (Housing) HP | 2.000 | inches | |||
| 50.80 | mm | ||||
| Length SGR² | 58.94 | inches | Excluding coupler | ||
| 1497.0 | mm | ||||
| 63.03 | inches | Including coupler (make-up) | |||
| 1601.0 | mm | ||||
| Length MGR³ | 45.75 | inches | Excluding coupler | ||
| 1162.0 | mm | ||||
| 49.84 | inches | Including coupler (make-up) | |||
| 1266.0 | mm | ||||
| 50.80 | mm |
| Value | Units | Comments | |||
|---|---|---|---|---|---|
| Operating Voltage | +14.5V | Volts | Nominal | ||
| Power Consumption | 0.3 | Watts | Nominal | ||
| Output | TTL/CMOS | ||||
| PCL Interface |
| Value | Units | Comments | |||
|---|---|---|---|---|---|
| Operating Temperature | -25 to 150 | °C | (see note 1) | ||
| -13 to 302 | °F | ||||
| Survival Temperature | -40 to 165 | °C | |||
| -40 to 329 | °F | ||||
| Vibration | 30 | g pk | 50 – 1000Hz | ||
| 20 | g rms | 50 – 1000Hz | |||
| Shock | 1000 | g | 0.5mS Half Sine |
Notes
- 175ºC option available
- SGR - Single Gamma Ray (Combined Battery)
- MGR - Modular Gamma Ray (Separate Battery Module)
We provide a responsive repair, calibration and product support service. Our highly experienced and knowledgeable personnel are available to troubleshoot or repair equipment, and provide general product technical assistance.
If you need effective sensor support for your business contact
support@azimuthmwd.com for more information.
